THE WAIT FOR A DIRECT REPLACEMENT PERFORMANCE D13 TURBO IS OVER!!

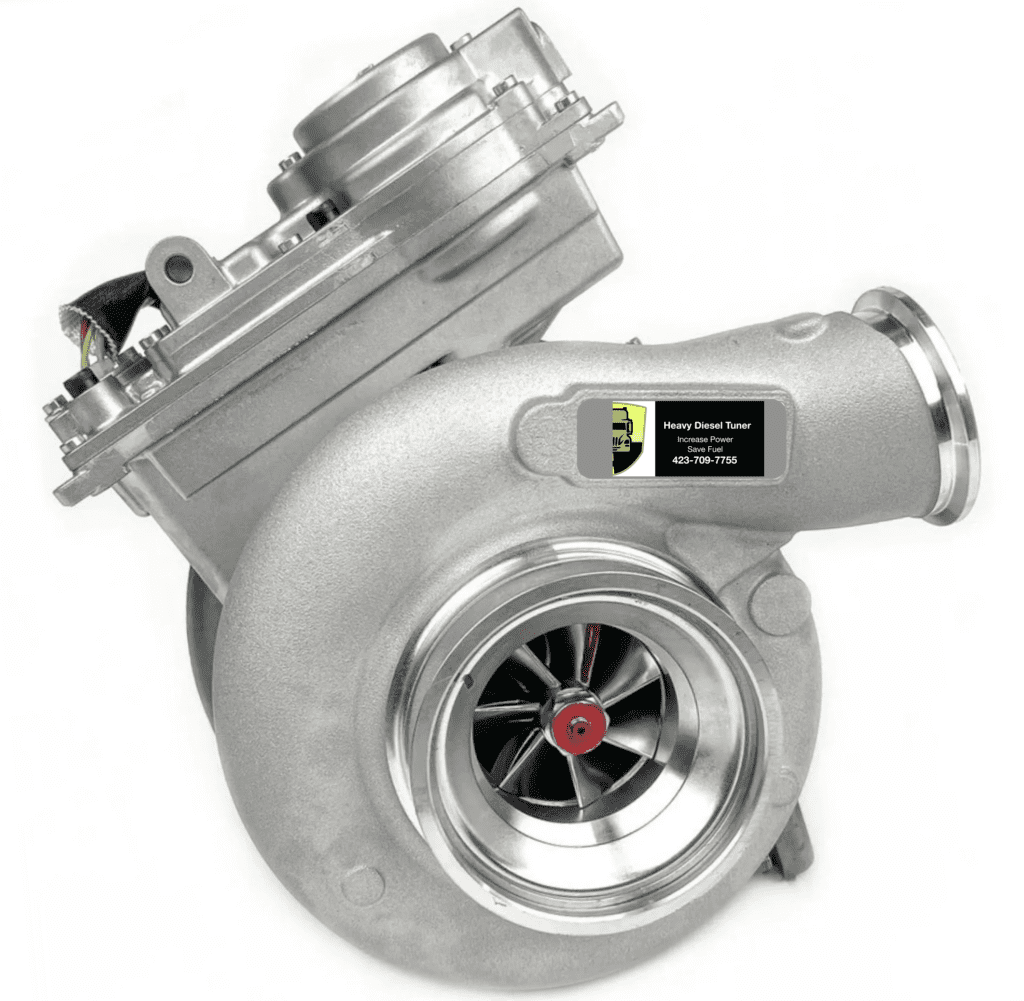

Volvo D13 Stage 1 Performance Turbocharger - Premium VGT Upgrade
2008 - 2019 Year Models
Designed specifically for 2008-2019 Volvo D13 engines, it delivers exceptional performance gains that professional drivers and fleet operators demand.
This Stage 1 performance turbocharger combines cutting-edge billet wheel technology with precision variable geometry turbine (VGT) control, striking the perfect balance between power, efficiency, and reliability.
Technical Specifications
Core Components:
- Stage 1 Billet Wheel VGT Turbocharger with integrated electronic actuator
- 64mm Billet Aluminum Compressor Wheel - CNC-machined from aerospace-grade aluminum for maximum strength and heat dissipation
- Cobalt VGT Cage and Ring Assembly - Delivers precise boost control across the entire RPM range
- Electronic Actuator - Factory-calibrated for seamless integration with OEM engine management systems
Power Range:
- Supports 400-625 Horsepower Applications
- Ideal for stock to moderately tuned engines
Construction Quality:
- OEM Replacement Quality Standards
- Direct bolt-on installation - no modifications required
- Meets or exceeds original equipment specifications
- Rigorous quality control and testing protocols
Performance Benefits
Reduced Turbo Lag
The advanced billet compressor wheel design and optimized VGT geometry virtually eliminate turbo lag, delivering power exactly when you need it.
Whether you're merging onto highways, climbing steep grades, or accelerating from a stop, the Big Rig 56500 responds instantly to throttle input.
Your truck will feel more responsive and easier to drive in every situation.
Faster Spool-Up
The lightweight 64mm billet aluminum compressor wheel reduces rotational mass while maintaining structural integrity, letting the turbocharger reach optimal boost pressure significantly faster than stock units.
This quicker spool-up delivers stronger acceleration from lower RPMs, reduces the need for downshifting, and improves fuel economy during normal driving.
Enhanced Airflow and Cooling
The aerodynamically optimized compressor wheel moves significantly more air than stock turbochargers, improving cylinder filling and combustion efficiency.
This increased airflow directly lowers exhaust gas temperatures (EGTs), reduces engine operating temperatures, and decreases thermal stress on critical engine components.
Cooler running temperatures extend engine life, reduce maintenance costs, and improve reliability—especially important for high-mileage commercial applications.
Improved Engine Reliability
By reducing operating temperatures and providing more efficient combustion, the Big Rig 56500 protects your engine investment.
Lower EGTs mean less stress on pistons, rings, valves, and head gaskets. More efficient airflow reduces the workload on your cooling system.
The result is an engine that runs cleaner, cooler, and more efficiently, with the potential for significantly extended service intervals and reduced long-term maintenance costs.
Installation and Compatibility
The turbocharger features:
- Factory-correct mounting flanges and bolt patterns
- OEM-specification oil feed and drain connections
- Correct coolant line routing and fittings
- Proper exhaust inlet and outlet sizing
- Compatible with all factory emission control systems
- No ECM reprogramming required for installation
Installation requires standard diesel technician tools and follows conventional turbocharger replacement procedures.
The unit arrives pre-assembled and pre-balanced, ready to install. All necessary gaskets and hardware are included.
Replacement for OEM part # 85151095
Cross reference: 831124, 3784777, 21238245, 85141060, 2838447, 3784779, 21364706, 85141063, 2838448, 3791465, 21366000, 85141857, 2841956, 3791466, 21468131, 85151094, 2841961, 3791486, 21559604, 222880308, 3767704, 3791487, 21559607, 1700321618, 3767706, 4031154, 21559608, 1700323564, 3767710, 4031203, 22001084, 1700323565, 3767711, 4627060, 22001088, 170-032-1618, 3767715, 4628776, 22001089, 170-032-3564, 3773446, 5328831, 22215685, 170-032-3565, 3773449, 5328832, 22215686, 3791466H, 3775775, 5353343, 22880309, 3791466NX, 3775776 5353344, 85003963, 3791466RX, 3779285, 5355474, 85020014, 5355484RV, 3779286, 5355475, 85021417, 5355484RX, 3779287, 5355484, 85021418, 5355485RV, 3784770, 5355485, 85124588, 549974100H, 3784773, 5499739, 85128133, 549974100HX, 3784774, 5499741, 85136184, 5499741H, P22880308, 5499741HX, 85151095, 85151094, 85141064, 85141060, 85151094, 85020018, 85026018, 85020014, 85021417, 22215689, 22215685, 22880308, 85141058, 85151105
Combine our Stage 1 Turbo and HDT-VolvoPM Power Tuner to Reach up to 625Hp SAFELY!
Volvo D13 Plug in Power Tuner W/ Stage 1 Turbo Upgrade Package
Combine our industry-leading power tuner, the HDT-VolvoPM, with the Stage 1 Billet turbo upgrade and get 600-625hp—all in one discounted package!
You'll receive the correct HDT-Volvo plug-and-play adjustable power tuner for your year and engine.
How It Works
This unit plugs into your engine computer and controls injector timing and fuel quantities, improving throttle response and lowering the torque curve by spooling the turbocharger faster.
Increase your hill-pulling speed, decrease downshifts, and start saving money today!
Easy Installation
This is a true "plug and play" unit that uses factory ECU connectors and takes less than 20 minutes to install.
Simply:
- Connect one end of the HDT wiring to the "A" connector of the ECU
- Connect the other end to the factory wiring harness
- Attach a power and ground wire to the alternator
- Secure everything from hazards with the supplied cable ties
You're ready to enjoy the new power!
Customizable Settings
Each system comes preprogrammed with 4 settings you can easily change using our push-button adjustment process.
D13's have 4 programs to choose from: +60HP, +80HP, +100HP, or STOCK.
Protected and Efficient
Factory engine protection systems—such as derate for exhaust gas over-temp and regen systems—stay intact and work as stock.
Increased MPG, throttle response, and horsepower!
Please note *This service is for increasing POWER ONLY, this DOES NOT EFFECT engine codes or regen equipment.*
H
Now Offering Full Tilt Exhaust Manifolds for the D13 Engines!
APPLICATIONS
- Volvo D-13 ’08-‘18
- Replaces OEM# 21469808
- Replaces OEM# 20738332
Please call for more information on additional applications.
BENEFITS
- Ceramic coating reduces heat & improves
air velocity - Increase Fuel Mileage .2-.3 mpg
- Lower manifold temps 300 ˚F
- Lower EGT’s 80-100 ˚F
- Reduce turbo lag
- No cracking, leaking or warping
- 3-year warranty
DETAIL
Full Tilt Performance manifolds have been designed to improve on all aspects over the manufacturers. All of our manifolds are cast out of a proprietary high quality blended steel, one of the hardest and most heat tolerant metals available today.
Thicker exhaust flanges and center dividers provide greater strength and durability for even the hardest working trucks. The joints have been designed with tighter tolerances, 50% more surface contact, and are press fit to ensure that they never leak. With thousands of hours of work by our engineering team, we have eliminated the sharp turns and twists to create smooth airflow to the turbo.
From there we top it off by smoothing out the interior even more by hand. Then we apply our high temperature resistant CeramiChrome coating to not just make them eye appealing but to add another heat barrier that keeps the exhaust gas energy moving to your turbo to improve turbo response. No manifold goes out the door without being flow tested to insure that they flow at least 20 Cubic Feet of air per Minute (CFM) more per port.
We do all of this to give you .2-.3 more MPG and the peace of mind that you have the most proven, highest flowing, and most reliable manifold on the market.
Plus, the best part is it’s all done here in the USA. Each manifold is proudly cast saying “Made in the USA.”
